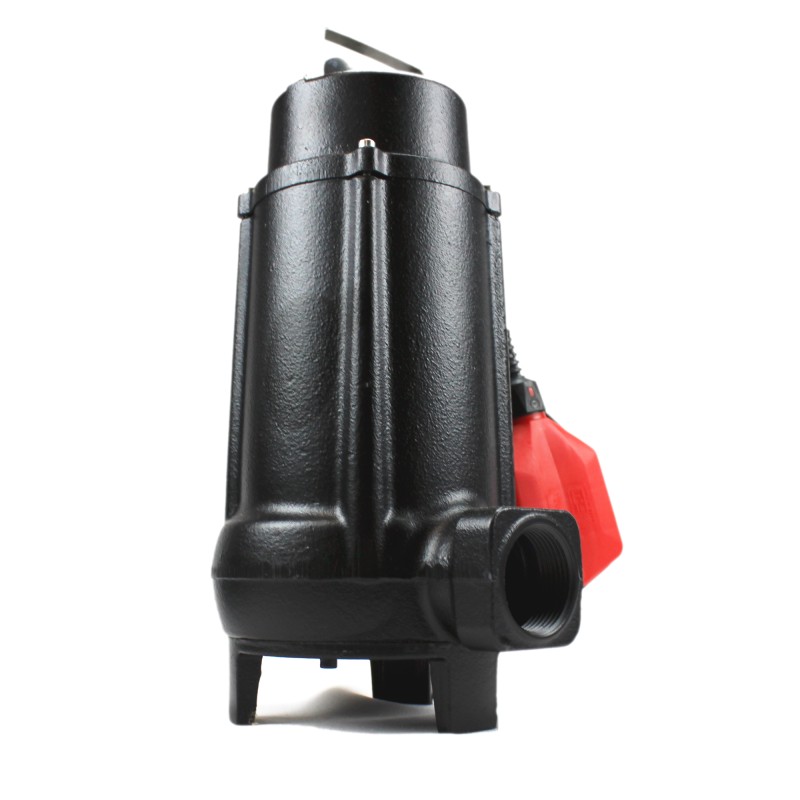

Exa FSD 100/40M-A dirty water submersible pump with float
- Capacity: 16.8 m3/hour
- Head: 9.0 meters
- Dirt passage: 30mm
- 230 Volt
- 750 Watts
- With float
Description
The FSD 100/40M-A is an industrial submersible pump with cast iron vortex impeller, stainless steel 416 pump shaft, over-sized bearings and floating float for automatic switching. The pump is designed for contaminated water with solid (and abrasive) components up to 30mm.
This Italian powerhouse is equipped with a mechanical silicon carbide/alumina seal plus a radial lip seal (oil seal) and the engine runs in an anti-oxide oil bath for extremely reliable operation.
The pump is equipped as standard with a 10 m rubber H07RNF cable, a reliable floating float and is equipped with a thermal protection.
Product Details
- Voltage
- 230 V
- Power
- 750 Watt
- Discharge connection
- 1 1/2"
- Head (m)
- 9,0 meter
- Flow rate (m³/h)
- 16,8 m3/uur
- Solids passage (mm)
- 30 mm
- Max. temperature (°C)
- 60°C
- Length (cm)
- 20,5 cm
- Width (cm)
- 15,6 cm
- Height (cm)
- 34,9 cm
- Impeller
- Cast iron
- Pump shaft
- Stainless steel 416
- Pump body
- Cast iron
- Capacity: 16.8 m3/hour
- Head: 9.0 meters
- Dirt passage: 30mm
- 230 Volt
- 750 Watts
- With float
