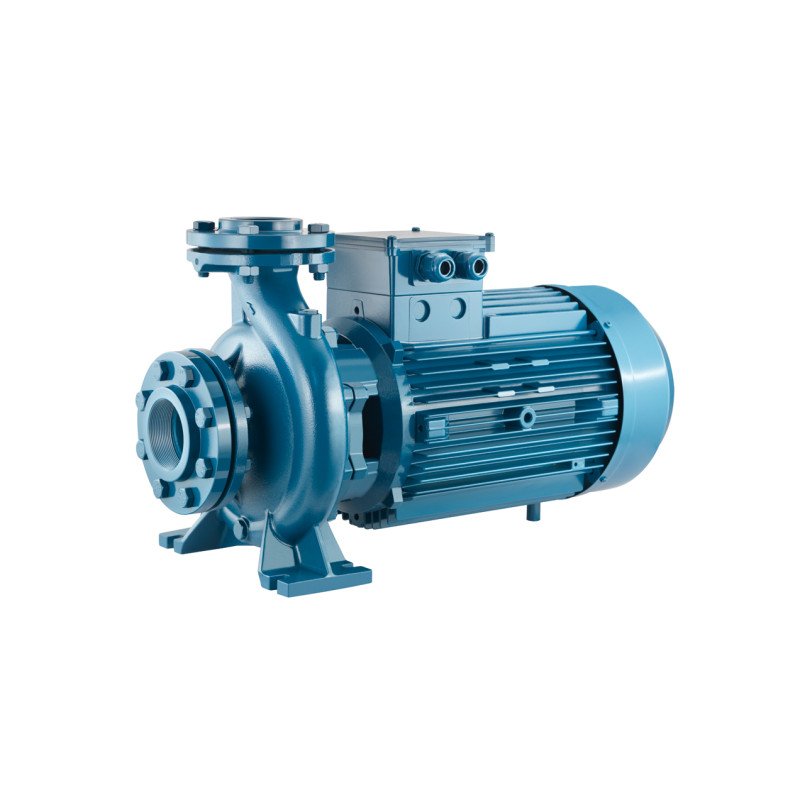

CM 40-125A norm pump
- Industrial centrifugal pump
- Flow rate: 42.0 m³/h
- Head: 27.7 metres
- 400V three phase
- Power: 3,000 W
Description
Standardized single-stage centrifugal pump for industrial and (large-scale) agricultural applications. Flange position and dimensions in accordance with EN733 (DIN24255).
Robustly constructed pump with a wide range of applications. Reliable and highly efficient! European top quality construction.
- Pump casing: Cast iron
- Impeller: Cast iron
- Pump shaft: Stainless steel AISI 304
- Mechanical seal: Ceramic/graphite
- Suction connection: DN40
- Discharge connection: DN32
- Max. working pressure: 10 bar
- Liquid temperature: -10°C to 90°C
- Maximum flow rate: 42.0 m³/h
- Maximum head: 27.7 metres
- Power: 3,000 W
- Voltage: 400V three phase
- Nominal speed: 2900 rpm
- Protection degree: IPX5
- Insulation class: F
Also available with bronze impeller and/or pump casing, and with stainless steel 316 impeller and/or pump casing. Contact us for prices and options.
Curve
| m³/h | 0 | 9 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 33 | 36 | 39 | 42 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| metres | 26,8 | 27,6 | 27,7 | 27,6 | 27,2 | 26,5 | 25,7 | 24,6 | 23,4 | 22 | 20,3 | 18,5 | 16,8 |
Product Details
- Power
- 3.000 Watt
- Suction connection
- DN65
- Discharge connection
- DN40
- Head (m)
- 27,6 meter
- Suction lift (m)
- 8,0 meter
- Flow rate (m³/h)
- 42,0 m3/uur
- Max. liquid temp. (°C)
- 90C°
- Impeller
- Cast iron
- Pump body
- Cast iron
