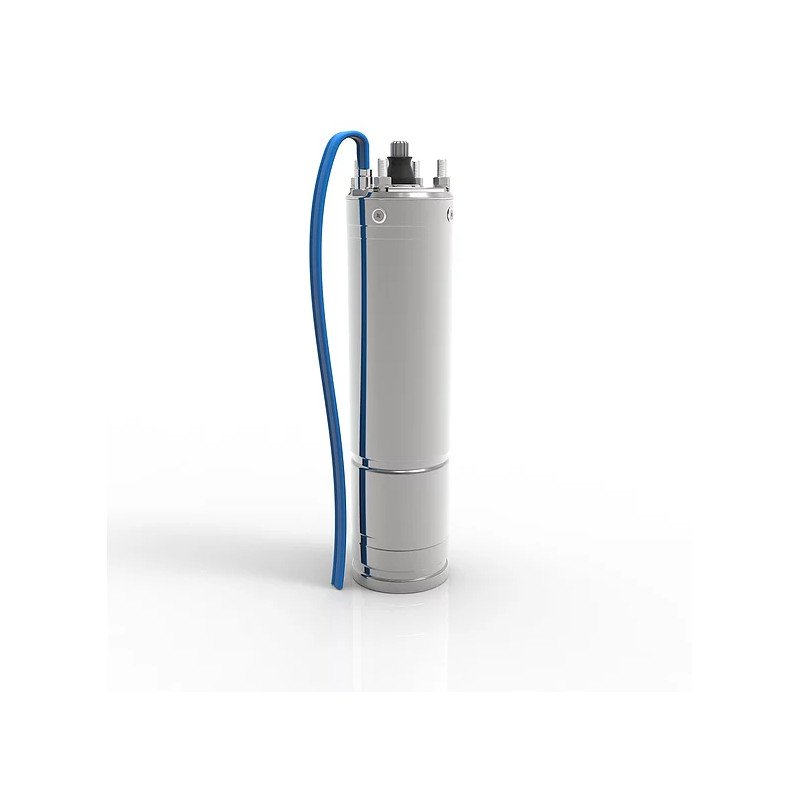

FKP 4BO 0,55kW 230V borehole pump motor 4"
- 4" borehole pump motor
- Power: 0.55 kW
- Voltage: 230V
- Type: Oil-filled
- Origin: Made in Italy
Since 2012
Free shipping · NL from €100 · BE/DE from €200
Description
Top-quality 4" borehole pump motor manufactured by Franklin-Coverco in Italy. Single-phase 230V version with a NEMA 4" coupling, allowing this motor to be connected to all pump ends that comply with the NEMA 4" standard.
The motor is made of AISI 304 stainless steel and filled with a non-toxic oil as a coolant. A maximum of 20 starts/hour and a minimum flow velocity of 0.10 m/s is required for proper cooling.
Comes with a 1.5-meter cable, which can easily be replaced by a longer cable with a waterproof connector or extended using a cast resin joint or one of our extension kits with waterproof heat-shrink tubing.
The motor cannot function correctly without the proper control box/capacitor box.
Included in delivery
- motor
- 1.5 meter 1.5mm2 cable
- manual
Product Details
- Voltage
- 230 V
- Power
- 0,55 kW
- Amperage
- 4,6 A
- Max. temperature (°C)
- 30°C
- Diameter
- 97 mm
- RPM
- 2845 RPM
- Axial thrust (N)
- 2.000 N
- Motor shaft
- Stainless steel 304
- Motor housing
- Stainless steel 304
- Mechanical seal
- SiC/NBR/Stainless Steel 304
