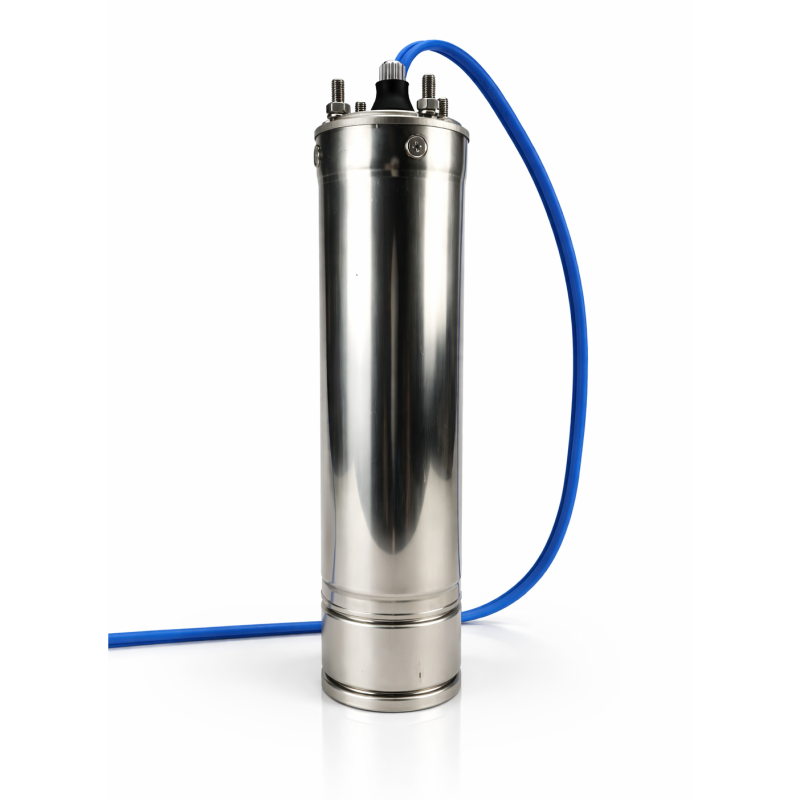

Panelli PWX 0,75kW 230V borehole pump motor 4"
- 4" borehole pump motor
- Power: 0.75 kW
- Voltage: 230V
- Type: Oil-filled
- Origin: Made in Italy
Since 2012
Free shipping · NL from €100 · BE/DE from €200
Description
Panelli 4" borehole motor made in Italy. Single-phase 230V version with NEMA 4" coupling, allowing this motor to be coupled with all pump ends that comply with the NEMA 4" standard.
The motor is constructed from AISI 304 stainless steel and filled with non-toxic oil for cooling. A maximum of 20 starts per hour and a minimum flow velocity of 0.15m/s is required for proper cooling. Recommended pH range = 6.5 - 8.0.
Supplied with a 1.5-meter cable, which can easily be replaced by a longer cable with a waterproof connector or extended using a resin joint or one of our extension kits with waterproof heat-shrink tubing.
The motor cannot function correctly without the appropriate control box (capacitor box).
Included in delivery
- motor
- 1.5 meter 1.5mm2 cable
- manual
Product Details
- Voltage
- 230 V
- Power
- 0,75 kW
- Amperage
- 6.5 A
- Max. temperature (°C)
- 35°C
- Diameter
- 96 mm
- RPM
- 2900 RPM
- Axial thrust (N)
- 2.500 N
- Motor shaft
- Stainless steel 304
- Motor housing
- Stainless steel 304
- Mechanical seal
- Stainless Steel/Graphite
