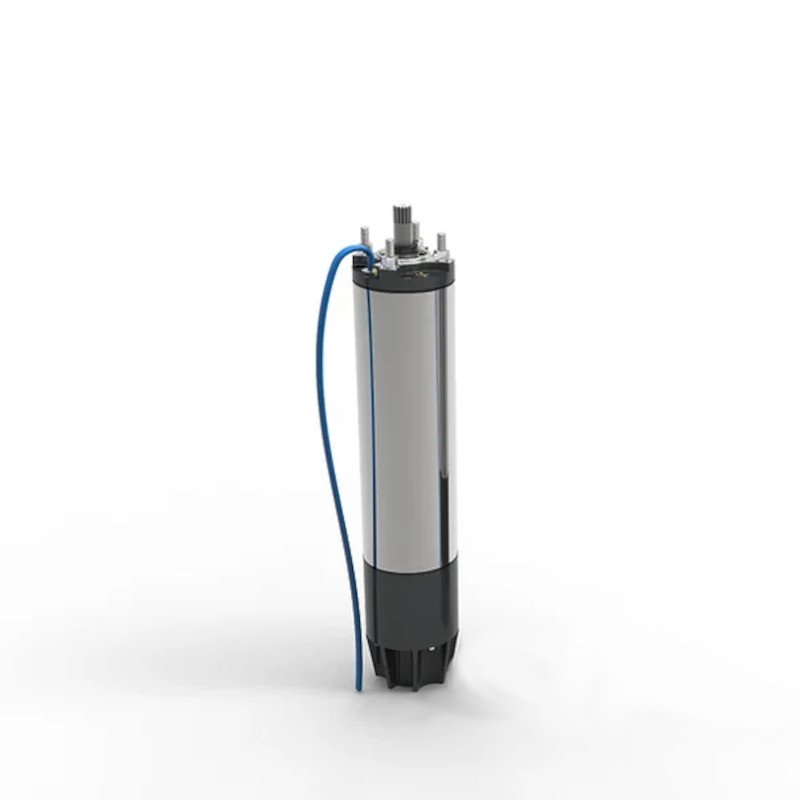

FKP 6EW 26kW 400V borehole pump motor 6"
- 6" borehole pump motor
- Power: 26kW
- Voltage: 400V
- Cooling: Water-filled
- Origin: Made in Italy
Since 2012
Free shipping · NL from €100 · BE/DE from €200
Description
Heavy-duty 6″ borehole pump motor 400V DOL (SD on request) with NEMA 6″ pump coupling. The motor housing is made of stainless steel 304 combined with G25 and filled with a non-toxic water gel as coolant. Max. 20 starts/hour and a minimum flow speed of 0.15m/s are required for proper cooling.
Extra heavy-duty version with oversized bearings, PE2+PA insulated windings, and a water-based non-toxic emulsion as coolant, allowing the motor to be used at temperatures up to 60°C.
Comes with 3 meters of 10mm2 cable, which can easily be replaced by a longer cable with a waterproof connector or extended using H07RN-F cable.
Included in delivery
- motor
- 3 meters 10mm2 cable
- manual
Product Details
- Voltage
- 400 V
- Power
- 26,0 kW
- Amperage
- 58 A
- Max. temperature (°C)
- 60°C
- Diameter
- 142 mm
- RPM
- 2870 RPM
- Axial thrust (N)
- 45.000 N
- Motor shaft
- Stainless steel 304
- Motor housing
- Stainless steel 304
- Mechanical seal
- SiC/SiC
