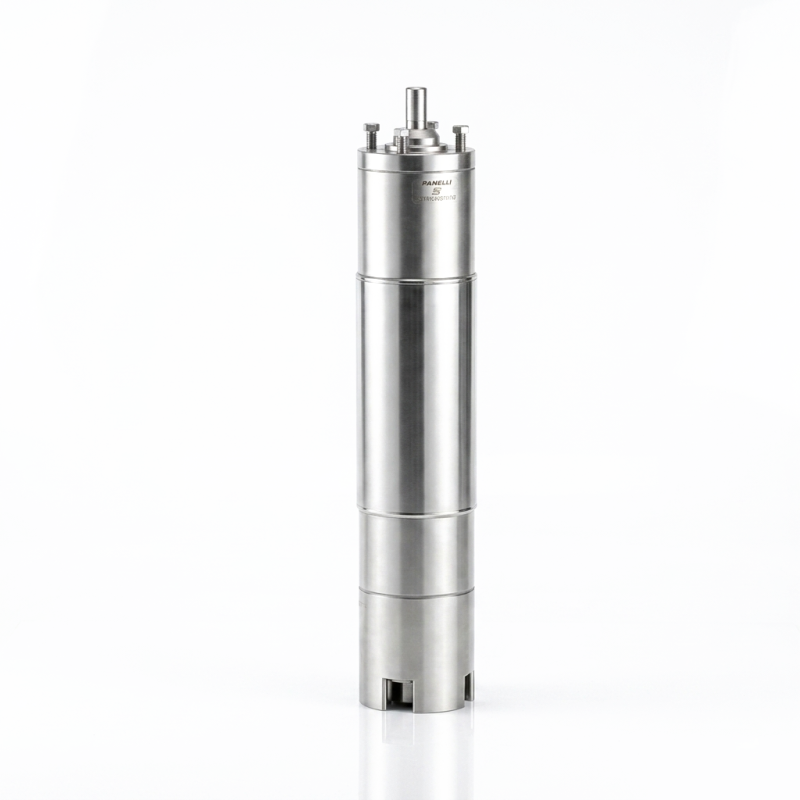

Panelli P607 5,5kW 400V borehole pump motor 6"
- 6" borehole pump motor
- Power: 5.5kW
- Voltage: 400V
- Cooling: Water-filled
- Origin: Made in Italy
Since 2012
Free shipping · NL from €100 · BE/DE from €200
Description
Fully constructed in stainless steel 304, 6″ borehole pump motor 400V DOL (SD on request) with NEMA 6″ pump coupling. The motor is filled with a non-toxic water gel used as a coolant. Max. 15 starts/hour and a minimum flow velocity of 0.15 m/s are required for proper cooling.
Panelli motors are hand-wound and can be optionally supplied at additional cost with PE2+PA windings, housing and shaft fully in Duplex or stainless steel 316, and a PT100 sensor. Top-quality Italian craftsmanship!
Supplied with a 3 metre 4 mm² cable, which can easily be replaced with a longer cable with a waterproof connector or extended using H07RN-F cable.
Included in delivery
- motor
- 3 metre 4 mm² cable
- manual
Product Details
- Voltage
- 400 V
- Power
- 5,5 kW
- Amperage
- 12,3 A
- Max. temperature (°C)
- 30°C
- Diameter
- 145 mm
- RPM
- 2900 RPM
- Axial thrust (N)
- 16.000 N
- Motor shaft
- Stainless steel 420B
- Motor housing
- Stainless steel 304
