Ultra U3V-100/5T vertical multistage pump
- Flow rate: 4.8 m³/h
- Head: 52.2 meters
- 400 Volt
- 750 Watt
Since 2012
Free shipping · NL from €100 · BE/DE from €200
In stock: ships within 1-2 business days
Description

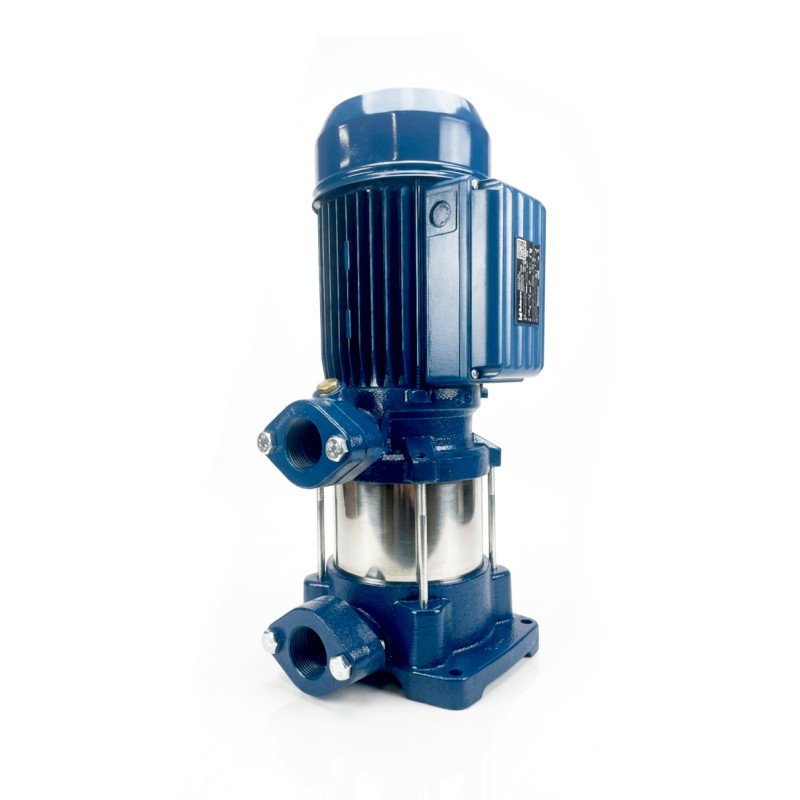

The U3V-100/5 is a high-quality vertical multistage centrifugal pump with overlapping ports for compact installation and easy mounting. The pump body and pump shaft are made of stainless steel 304, the impellers and diffusers of Noryl and the pump connections are made of G25 cast iron. The pump is suitable for drinking water, glycol water and various other clean fluids.
Maximum ambient temperature is 40°C and the fluid temperature must be between 5°C and 35°C.
Applications
The U3V-100/5 is the ideal choice for:
- Pressure boosting in residential and industrial systems
- Irrigation for gardens and small-scale cultivation
- Water treatment and distribution systems
- Heating and air conditioning installations
- Food industry (suitable for food contact)
- Washing systems and industrial cleaning applications
100% EU - top quality bearings - excellent Pentax build quality!
Curve
| m³/h | 0.0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.6 | 4.8 |
|---|---|---|---|---|---|---|---|
| meters | 52.2 | 48.9 | 45.1 | 40.8 | 36.0 | 25.4 | 14.0 |
Product Details
- Voltage
- 400 V
- Power
- 0,75 kW
- Suction connection
- 1 1/4"
- Discharge connection
- 1 1/4"
- Head (m)
- 52.2 meter
- Flow rate (m³/h)
- 4.8 m3/uur
- Impeller
- Noryl
- Pump shaft
- Stainless steel 304
- Pump body
- Stainless steel 304
- Mechanical seal
- Ceramic/Graphite/EPDM
