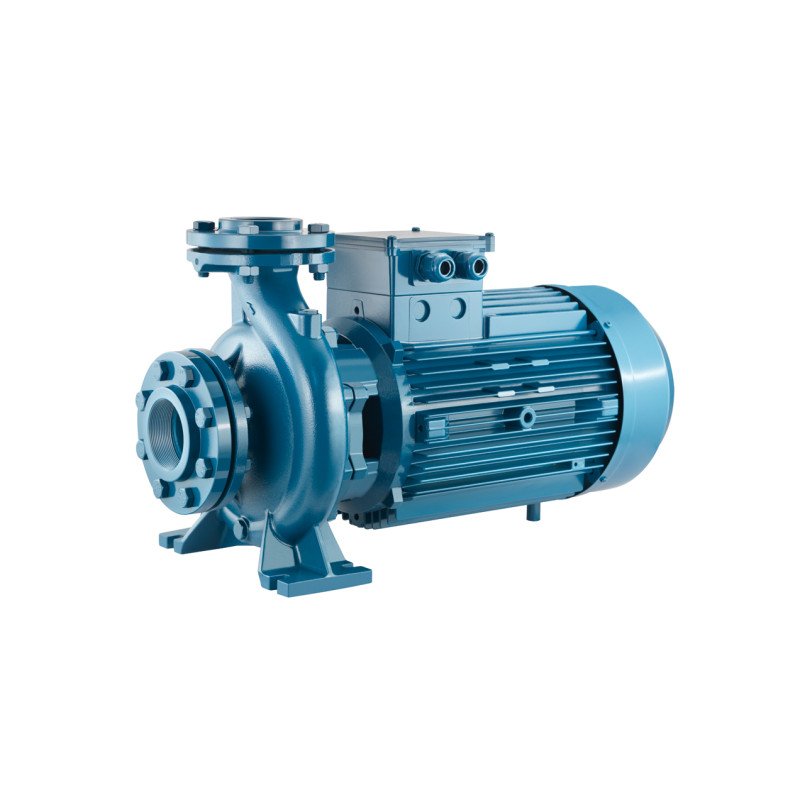

CM 40-125C norm pump
- Industrial centrifugal pump
- Flow rate: 36 m³/uur
- Head: 18,5 meter
- 400V three phase
- Power: 1.500 W
Description
Standardized single-stage centrifugal water pump for industrial and (large-scale) agricultural applications. Flange position and dimensions in accordance with EN733 (DIN24255).
Robustly constructed pump with a wide range of applications. Reliable and highly efficient!
- Pump casing: Cast iron
- Impeller: Cast iron
- Pump shaft: Stainless steel
- Mechanical seal: Ceramic/graphite
- Suction connection: DN50
- Discharge connection: DN40
- Max. working pressure: 10 bar
- Liquid temperature: -10°C to 90°C
- Nominal speed: 2900 rpm
- Power: 1.500 W
- Voltage: 400V three phase
- Insulation class: F
- Protection degree: IPX5
Also available with a bronze impeller and/or pump casing, and with a stainless steel 316 impeller and/or pump casing. Contact us for prices and options.
Curve
| m³/h | 0 | 9 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 33 | 36 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| metres | 17,9 | 18,5 | 18,4 | 18,1 | 17,5 | 16,6 | 15,6 | 14,3 | 12,8 | 11,1 | 9,4 |
Product Details
- Power
- 1.500 Watt
- Suction connection
- DN65
- Discharge connection
- DN40
- Head (m)
- 18,5 meter
- Suction lift (m)
- 8,0 meter
- Flow rate (m³/h)
- 36,0 m3/uur
- Max. liquid temp. (°C)
- 90C°
- Impeller
- Cast iron
- Pump body
- Cast iron
