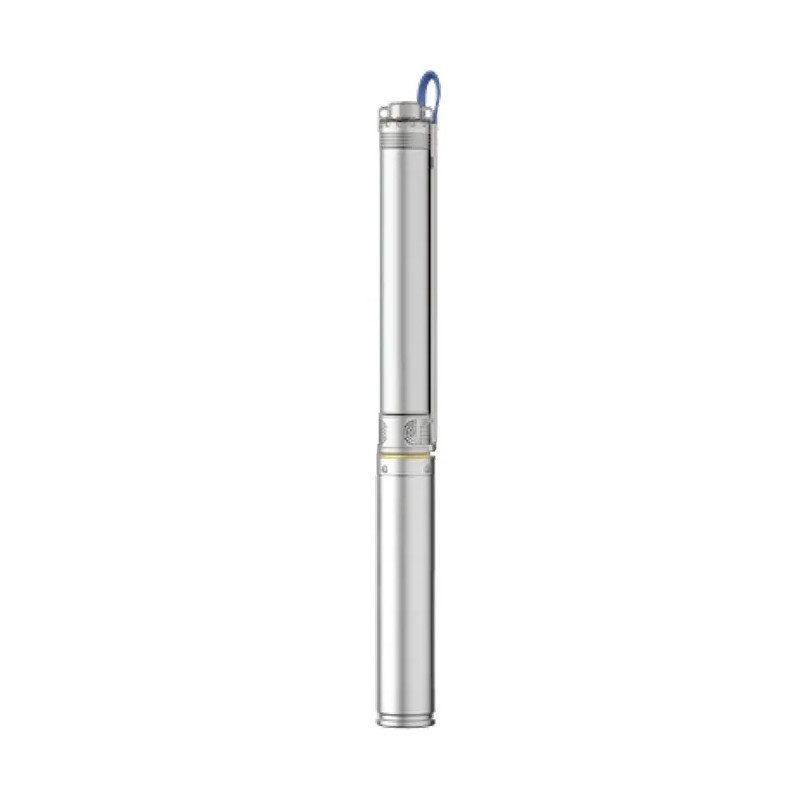

Panelli 75 PRX5/21
- 3″ borehole pump
- 230V
- 1,1
- 7.2 m³/hour
- 68 metres
Since 2012
Free shipping · NL from €100 · BE/DE from €200
Description
3″ borehole pump made of stainless steel 304 with Noryl impellers. Suitable for installation in wells with a minimum internal diameter of 78 mm. Sand-resistant up to 150 g/m³, making it also suitable for wells that produce a very small amount of sand. This pump is ideal for garden irrigation and the perfect replacement for 1 HP centrifugal pumps.
The pump is supplied including a capacitor box with thermal protection. The advantage of a separate capacitor box is that in case of problems with the capacitor (a component costing only a few euros), you can simply replace the capacitor above ground without dismantling the entire system.
Included in delivery
- pump with motor
- capacitor box
- 20 metres of power cable
- manual
Advantages of a borehole pump
- quiet
- out of sight
- frost damage is impossible
- no leaking seals
- no problems with low water levels
Curve
| m3/uur | 0,0 | 1,8 | 2,4 | 3,0 | 3,6 | 4,2 | 4,8 | 6,0 | 7,2 |
|---|---|---|---|---|---|---|---|---|---|
| meters | 68 | 62,5 | 59 | 55 | 51 | 47 | 42,5 | 33,5 | 23 |
Product Details
- Voltage
- 230 V
- Power
- 1,1 kW
- Discharge connection
- 1"
- Head (m)
- 68 meter
- Flow rate (m³/h)
- 7,2 m3/h
- Impeller
- Noryl
- Pump shaft
- Stainless steel 304
- Pump body
- Stainless steel 304
