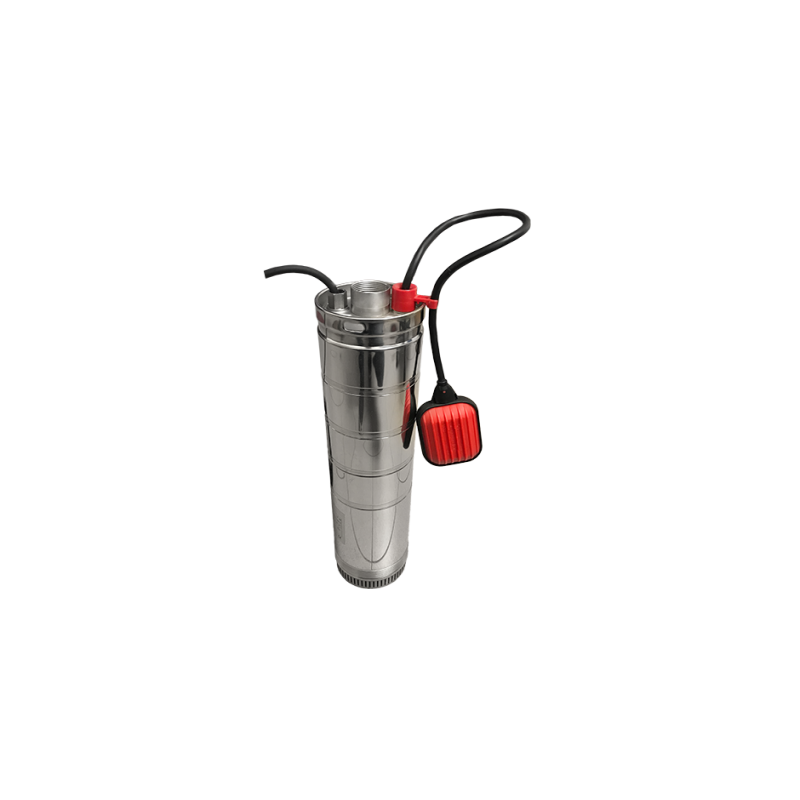

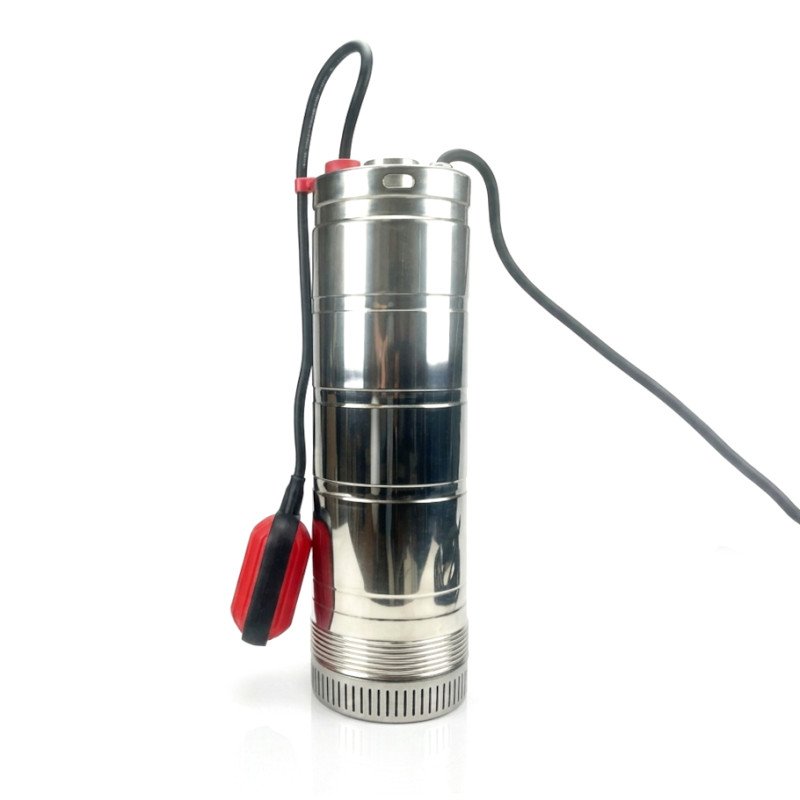

FEX5 315 reservoir pump with float switch
- 5" submersible pump
- 230 V
- 1.1 kW
- 4.8 m³/h
- 80 meters
Since 2012
Free shipping · NL from €100 · BE/DE from €200
Description
The FEX5 submersible pressure pump is designed for use in tanks, open wells, and boreholes with a minimum diameter of 130 mm. The Noryl impellers are positioned below the motor, ensuring optimal motor cooling even at low water levels, which significantly extends the service life. The remaining pump components are made of stainless steel 304, making the pump suitable for potable water applications.
The pump is equipped with a double mechanical seal with an intermediate oil chamber. This design protects the seals and extends the service life of the pump, even under demanding operating conditions.
The tank pump is sand-resistant up to 100 g/m³ and is supplied with a 10 meter H07RN-F cable. The pump is fitted with a float switch to protect against dry running.
Performance curve
| m3/uur | 0,0 | 0,6 | 1,2 | 1,8 | 2,4 | 3,0 | 3,6 | 4,2 | 4,8 |
|---|---|---|---|---|---|---|---|---|---|
| meters | 80 | 74 | 68 | 62 | 54 | 45 | 34 | 23 | 11 |
Product Details
- Voltage
- 230 V
- Power
- 1,1 kW
- Discharge connection
- 1 1/4"
- Head (m)
- 80 meter
- Flow rate (m³/h)
- 4,8 m3/uur
- Max. temperature (°C)
- 35°C
- Length (cm)
- 61,6 cm
- Weight (kg)
- 20,0 kg
- Impeller
- Noryl
- Pump shaft
- Stainless steel 304
- Pump body
- Stainless steel 304
- Diameter
- 124 mm
