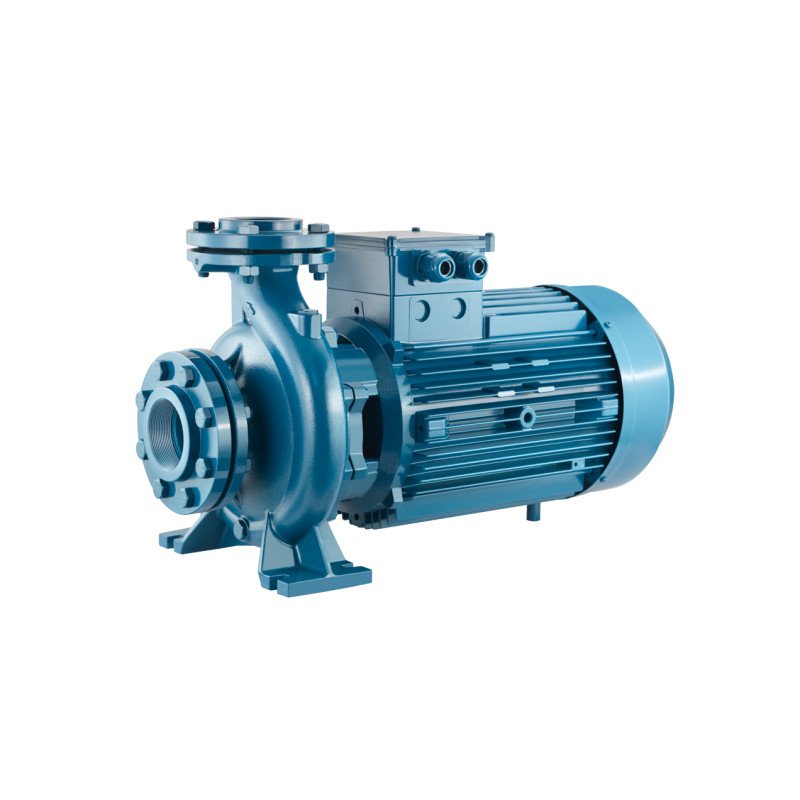

CM 32-250B norm pump
- Industrial centrifugal pump
- Flow rate: 27.0 m³/h
- Head: 84.8 metres
- 400V three phase
- Power: 11,000 W
Since 2012
Free shipping · NL from €100 · BE/DE from €200
Description
Standardized single-stage centrifugal water pump for industrial and (large-scale) agricultural applications. Flange position and dimensions in accordance with EN733 (DIN24255).
Robustly constructed pump with a wide range of applications. Reliable and highly efficient!
- Pump casing: Cast iron
- Impeller: Cast iron
- Pump shaft: Stainless steel AISI 304
- Mechanical seal: Ceramic/graphite
- Suction connection: DN50
- Discharge connection: DN32
- Max. working pressure: 10 bar
- Liquid temperature: -10°C to 90°C
- Flow rate max.: 27.0 m³/h
- Head max.: 84.8 metres
- Power: 11,000 W
- Voltage: 400V three phase
- Nominal speed: 2900 rpm
- Motor protection degree: IPX5
- Insulation class: F
Also available with a bronze impeller and/or pump casing, and with a stainless steel 316 impeller and/or pump casing. Contact us for prices and options.
Curve
| m³/h | 0 | 6 | 7,5 | 9 | 12 | 15 | 18 | 21 | 24 | 27 |
|---|---|---|---|---|---|---|---|---|---|---|
| metres | 84,8 | - | 84 | 83,9 | 83,6 | 82,7 | 81,1 | 78,6 | 75,4 | 73,2 |
Product Details
- Power
- 11.000 Watt
- Suction connection
- DN50
- Discharge connection
- DN32
- Head (m)
- 84,8 meter
- Suction lift (m)
- 8,0 meter
- Flow rate (m³/h)
- 27,0 m3/uur
- Max. liquid temp. (°C)
- 90C°
- Impeller
- Cast iron
- Pump body
- Cast iron
