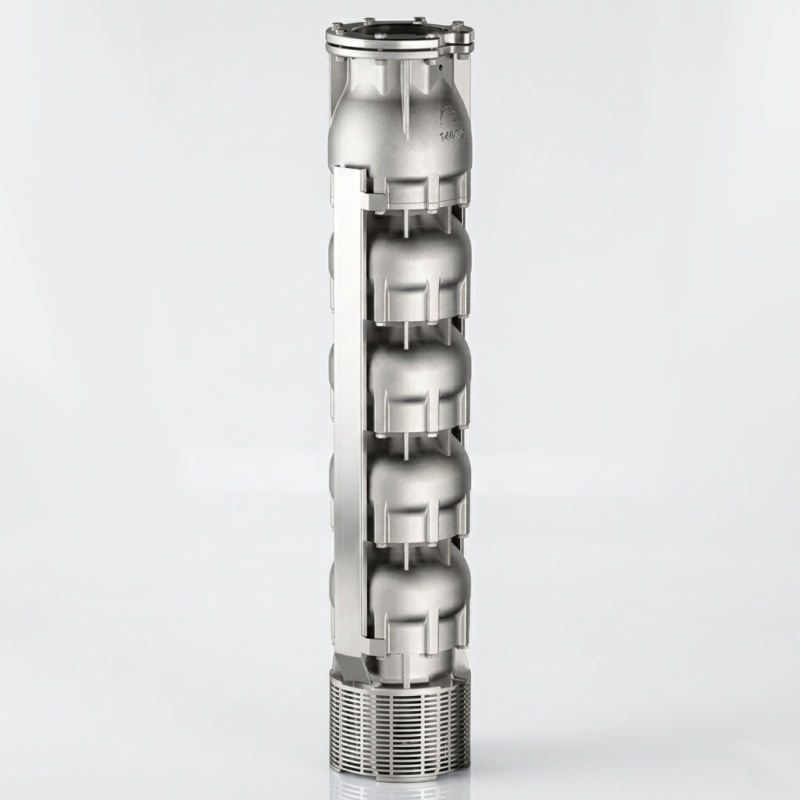

Panelli 140 SX 44/08
- Max. flow rate: 60,0 m³/h
- Max. head: 112 m
- 6″ borehole pump
- 400V three phase
- Power: 13,0 kW
Since 2012
Free shipping · NL from €100 · BE/DE from €200
Description
6″ borehole pump made of SS 304. Suitable for installation in wells with a minimum (internal) diameter of 150mm. Sand-resistant up to 50g/m³, making it suitable for wells with minor sand content. This pump is ideal for hose reel irrigation and large industrial water supply systems.
The pump is supplied as standard with a 13kW (17,5hp) DOL 6″ borehole motor with SS 304 housing, SS 420B pump shaft and pre-filled with a non-toxic water-based emulsion for optimal cooling and operation.
(SS 316 and Duplex versions are available on request)
Included with delivery
- Pump with motor
- 3 metre cable (4mm²)
- Manual
Advantages of a borehole pump
- Silent operation
- Out of sight
- No frost damage possible
- No leaking seals
- No problems with low water levels
Curve
| m³/h | 0 | 24 | 30 | 36 | 42 | 48 | 54 | 60 |
|---|---|---|---|---|---|---|---|---|
| metres | 112 | 91 | 89 | 85 | 78 | 70 | 59 | 51 |
Product Details
- Voltage
- 400 V
- Power
- 13,0 kW
- Discharge connection
- 3"
- Head (m)
- 112 meter
- Flow rate (m³/h)
- 60,0 m3/uur
- Impeller
- Stainless steel 304
- Pump shaft
- Stainless steel 304
- Pump body
- Stainless steel 304
