Panelli 140 SX 54/06
- Max. flow rate: 72,0 m³/h
- Max. head: 82 m
- 6″ borehole pump
- 400V three phase
- Power: 11,0 kW
Since 2012
Free shipping · NL from €100 · BE/DE from €200
Description

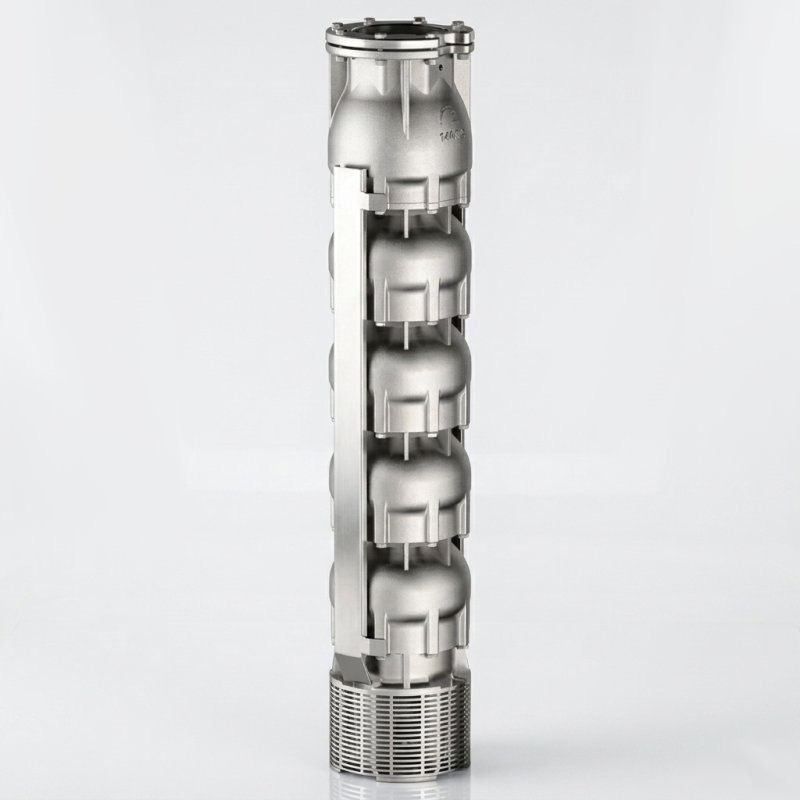

6″ borehole pump fully manufactured from stainless steel 304. Suitable for installation in wells with a minimum (internal) diameter of 150mm. Sand-resistant up to 50g/m³, making it suitable for wells with minor sand content. This pump is ideal for large-scale irrigation and industrial water supply systems.
The pump is supplied as standard with an 11kW (15hp) DOL 6″ borehole motor with complete stainless steel 304 housing, stainless steel 420B pump shaft and factory-filled with a non-toxic water-based emulsion for optimal cooling and operation.
(Stainless steel 316 and Duplex versions are available upon request)
Delivery includes
- pump with motor
- 3 metre 4mm² cable
- operating manual
Advantages of a borehole pump
- silent operation
- out of sight
- frost damage impossible
- no leaking seals
- no problems with low water levels
Curve
| m³/h | 0 | 36 | 42 | 48 | 54 | 60 | 66 | 72 |
|---|---|---|---|---|---|---|---|---|
| metres | 82 | 62 | 58 | 55 | 51 | 47 | 41 | 36 |
Product Details
- Voltage
- 400 V
- Power
- 11,0 kW
- Discharge connection
- 3"
- Head (m)
- 82 meter
- Flow rate (m³/h)
- 72,0 m3/uur
- Impeller
- Stainless steel 304
- Pump shaft
- Stainless steel 304
- Pump body
- Stainless steel 304
