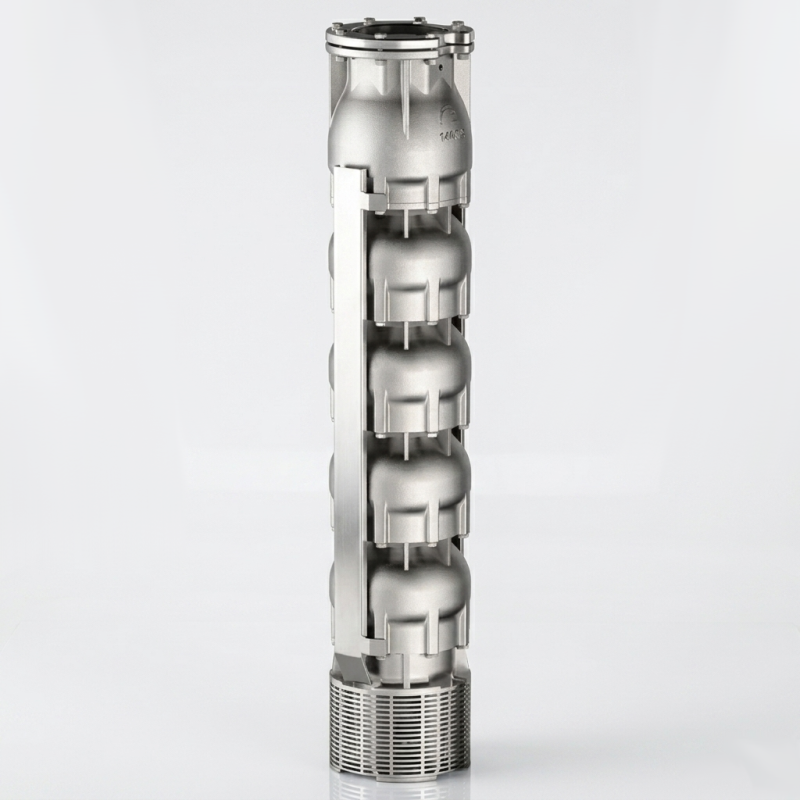

Panelli 140 SX 54/09
- Max. flow rate: 72.0 m³/h
- Max. head: 123 m
- 6″ borehole pump
- 400V three phase
- Power: 15.0 kW
Since 2012
Free shipping · NL from €100 · BE/DE from €200
Description
6″ borehole pump made of SS 304. Suitable for installation in wells with a minimum (internal) diameter of 150mm. Sand-resistant up to 50g/m³, making it suitable for wells with minor sand content. This pump is ideal for high pressure irrigation and industrial water supply systems.
The pump is supplied as standard with a 15kW (20hp) DOL 6″ borehole motor with SS 304 housing, an SS 420B pump shaft and pre-filled with a non-toxic water-based emulsion for optimal cooling and operation.
(SS 316 and Duplex versions are available on request)
- Maximum flow rate: 72.0 m³/h
- Maximum head: 123 m
- Power: 15.0 kW
- Voltage: 400V three phase
- Pump casing material: SS 304
- Pump shaft material: SS 420B
- Sand resistance: 50 g/m³
- Minimum well diameter: 150mm
Delivery contents
- Pump with motor
- 3 metre cable (4 mm²)
- Operating manual
Advantages of a borehole pump
- Quiet operation
- Out of sight
- No risk of frost damage
- No leaking seals
- No problems with low water levels
Curve
| m³/h | 0 | 36 | 42 | 48 | 54 | 60 | 66 | 72 |
|---|---|---|---|---|---|---|---|---|
| metres | 123 | 93 | 86 | 82 | 77 | 70 | 62 | 54 |
Product Details
- Voltage
- 400 V
- Power
- 15,0 kW
- Discharge connection
- 3"
- Head (m)
- 123 meter
- Flow rate (m³/h)
- 72,0 m3/uur
- Impeller
- Stainless steel 304
- Pump shaft
- Stainless steel 304
- Pump body
- Stainless steel 304
