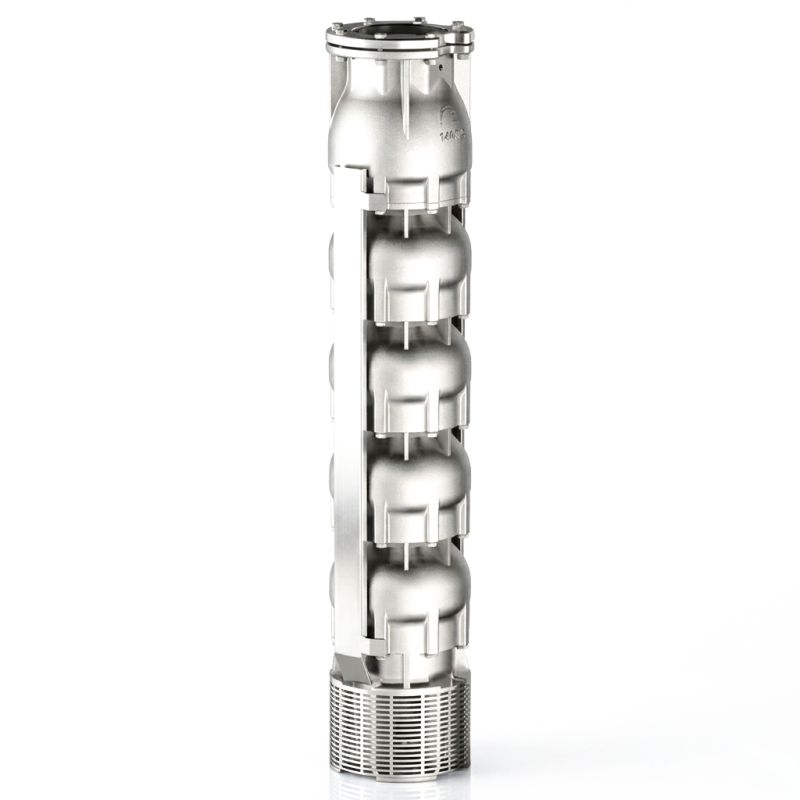

Panelli 140 SX 54/11
- Max. flow rate: 72.0 m³/h
- Max. head: 151 m
- 6″ borehole pump
- 400V three phase
- Power: 18.5 kW
Since 2012
Free shipping · NL from €100 · BE/DE from €200
Description
6″ borehole pump made of SS 304. Suitable for installation in wells with a minimum (internal) diameter of 150mm. Sand-resistant up to 50g/m³, making it suitable for wells with minor sand content. This pump is ideal for large-scale high-pressure irrigation and industrial water supply systems.
The pump is supplied as standard with an 18.5kW (25hp) DOL 6″ borehole motor with full SS 304 housing, SS 420B pump shaft and pre-filled with a non-toxic water-based emulsion for optimal cooling and operation.
(SS 316 and Duplex versions are available on request)
Delivery includes
- Pump with motor
- 3 metres cable (4 mm²)
- Operating manual
Advantages of a borehole pump
- Silent operation
- Out of sight installation
- No risk of frost damage
- No leaking seals
- No problems with low water levels
Curve
| m³/h | 0 | 36 | 42 | 48 | 54 | 60 | 66 | 72 |
|---|---|---|---|---|---|---|---|---|
| metres | 151 | 113 | 106 | 100 | 94 | 86 | 76 | 66 |
Product Details
- Voltage
- 400 V
- Power
- 18,5 kW
- Discharge connection
- 3"
- Head (m)
- 151 meter
- Flow rate (m³/h)
- 72,0 m3/uur
- Impeller
- Stainless steel 304
- Pump shaft
- Stainless steel 304
- Pump body
- Stainless steel 304
